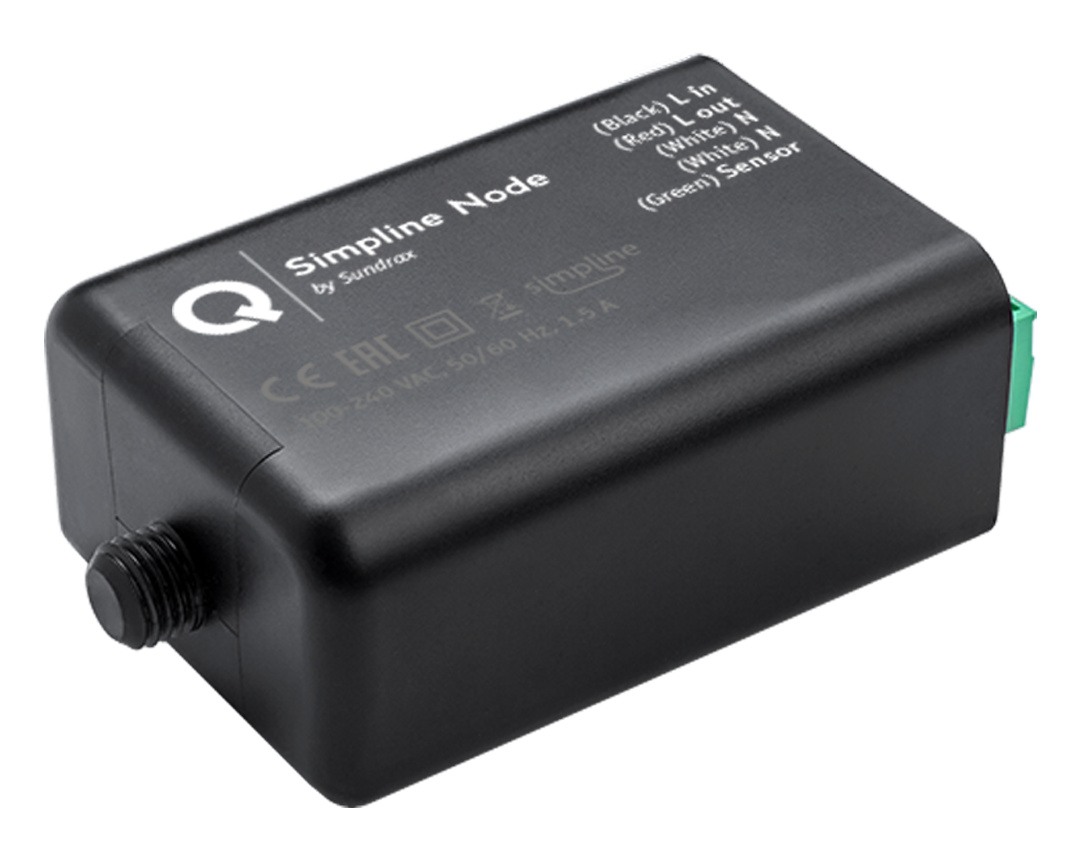

Simpline Node

Simpline Node — Powerline Control

Simpline Node — Powerline Control

adobe-PDF-icon_30x Data Sheet adobe-PDF-icon_30xMounting Guide

Description

Simpline Node is powerline control unit integrated into the driver of a lighting fixture or mounted on the pole. Every lamp equipped with Simpline Node is controlled individually by Central Gateway QULON C, C1 or C2 and QULON Simpline via 230VAC power lines through Sundrax’s innovative Simpline technology which operates at CENELEC EN 50065-1 (band-C) standard in 132.5kHz frequency band.

Simpline Node provides dimming functionality via different interfaces (DALI, PWM/1-10V) as well as individual load control (on/off). Compatible with 3rd party motion sensors. Installed only one per pole.



Key Features

  • Versions with open wires, terminal blocks and OEM
  • Available for installation into any luminaire case
  • Luminaire or pole mounting
  • Individual lighting control without extra wiring
  • Motion sensor input
  • Embedded triac for load switching on/off
  • Work with luminaires up to 1000W
  • Working capacity up to 305V



Mounting Options

Mounting Options for Simpline Node

Mounting Options for Simpline Node



Specifications

Connectors: Leads, Screw terminals
Sensors: Motion sensor input
Control output interface: 1-10V/PWM, DALI
Communication with controller: CENELEC EN 50065-1 (band C)
Input Voltage: ~100-250 VAC, 50/60 Hz
Max current: 3 A
Anti-Jamming Filter: integrated (load power 20-250 W), external (load power 250-800 W)
Max load Power: 300 W (integrated anti-jamming filter); 1000 W (external anti-jamming filter)
Setup: Remote via Qulon C, C1 or C2 and Qulon Simpline
Operating Temperature: -40…+70°C
IP Rating: IP 66
Dimensions, mm: 80(D) x 57(H) x 35(W)
Mounting: Luminaire case or Pole mounting



Product Line

Individual powerline control node, terminal block connection, 0-10V PWM interface (load power 20-250 W)
Product code: QUL-PLC-T-PWM-1
EAN: 5060452241487

Individual powerline control node, terminal block connection, 0-10V PWM interface + integrated anti-jamming filter (load power 250-800 W)
Product code: QUL-PLC-T-PWM-0
EAN: 5060452241494

Individual powerline control node, wired connection, 0-10V PWM interface (load power 20-250 W)
Product code: QUL-PLC-W-PWM-1
EAN: 5060452241555

Individual powerline control node, wired connection, 0-10V PWM interface + integrated anti-jamming filter (load power 250-800 W)
Product code: QUL-PLC-W-PWM-0
EAN: 5060452241562

Individual powerline control node, terminal block connection, DALI interface (load power 20-250 W)
Product code: QUL-PLC-T-DAL-1
EAN: 5060452241623

Individual powerline control node, terminal block connection, DALI interface + integrated anti-jamming filter (load power 250-800 W)
Product code: QUL-PLC-T-DAL-0
EAN: 5060452241630

Individual powerline control node, wired connection, DALI interface (load power 20-250 W)
Product code: QUL-PLC-W-DAL-1
EAN: 5060452241692

Individual powerline control node, wired connection, DALI interface + integrated anti-jamming filter (load power 250-800 W)
Product code: QUL-PLC-W-DAL-0
EAN: 5060452241708



Accessories

Simpline Luminaire Mounting Kit ACC-MK-QPLC-LAMP
Simpline Pole Mounting Kit ACC-MK-QPLC-LP
PIR Motion Sensor ACC-OP-SENSI
Microwave Motion Sensor ACC-OP-SENSM
Simpline External Anti-Jamming Filter, 4A ACC-AJF-1/4
