GigaJet PRO

DMX-Ethernet node with fibre optic link, gigabit switch and media converter

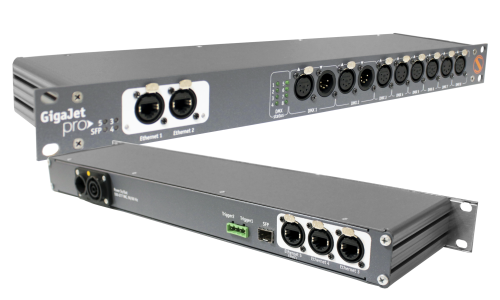

GigaJet Pro — DMX-Ethernet node with fibre optic link, gigabit switch and mediaconverter

GigaJet Pro — DMX-Ethernet node with fibre optic link, gigabit switch and media converter

adobe-PDF-icon_30x Data Sheet



Description

Multifuctional rack mounted bidirectional converter, splitter, booster, intelligent merger transmitting DMX/ArtNet/sACN/KiNet/RTTrPL streams in Gigabit Ethernet (10/100/1000 Base-T) and fibre optic networks. Fibre optic increases maximum length of direct connection between devices up to 2000 metres (using multimode SFP modules), or up to 10 km (using single mode SFP modules). The device also acts as 5-port Ethernet switch working in 10/100/1000BASE-TX networks. Get a Quote

Application

  • Convert DMX512 into ArtNet and sACN protocols in both directions to transmit DMX data through Ethernet LAN and optical link for long distances up to 10,000 metres between transmitter and receiver
  • Working with lighting installations when distance between FOH console and stage exceeds 100 metres
  • Transmit more DMX streams with less cables
  • Gigabit network switch
  • Lighting control and management through single network (Ethernet + fibre)
  • Convert mapped video content from mapping software into DMX streams
  • Provide interfacing between modern stage lighting software and DMX lighting
  • Real-time control of video projectors and laser units supporting
  • ArtNet or sACN from DMX console



Key Features

  • 8 DMX512 ports (XLR 5-pin, 2 paired)
  • Integrated fibre optic port (SFP module)
  • Gigabit network switch
  • 5 Ethernet ports (EtherCON)
  • PoE support
  • Maximum surge protection – power supply optimized for voltage from 90 to 315 V
  • Simple user-friendly web interface
  • Configurable DMX port direction and parametres
  • Supported network protocols: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL
  • Full RDM E1.20 support (controller/responder)
  • Static scenes (presets) stored in non-volatile memory
  • Ability to work as standalone splitter/merger
  • Fastest recovery after short power failure
  • PowerCON TRUE1 inlet+outlet combination
  • Trigger inputs for external events and alarms
  • DHCP support
  • IP address conflict detection

Switch (2) Trigger (2) POE (2)

Merging Options

  • HTP: highest takes precedence,
  • LTP: latest takes precedence,
  • AUTO: last modified takes precedence – smart merging mode,
  • PRIORITY: for sACN streams with priority tag, console with the highest priority for a given Universe will be in charge,
  • BACKUP: any network universe or local static scene can be selected for outputting when main source fails,
  • TRIGGER and X-FADE: switch dynamically between lighting desks, media servers, and other control sources.



Specifications

Supported protocols: DMX512, RDM, ArtNet I, II, III, IV, sACN draft, release, KiNet v1, v2, RTTrPL
Data refresh rate: 44 Hz
Ethernet ports: 5x RJ-45/ EtherCON
DMX ports: 2x XLR (M), 8x XLR (F) (5-pin)
Fibre optic connectors: SFP module
Ethernet connectors: RJ-45/ etherCon
Networks: 10/100/1000 Base-TX
Trigger inputs: 2
Power supply: ~100-277 VAC, 50/60 Hz; PoE 802.3af mode A, B
Input Power (max): 5W
Mains Fuse: 0.5 A
IP Rating: IP 20
Dimensions, mm: 482(D) x 44(H) x 110(W)

Product Line

GJP-5-8D5EF 8 DMX inputs/outputs(5-pin), 5 Ethernet port, 1 SFP port, triggers port

Accessories

MCA-1-TMK Truss mounting kit
DMX-ACC-1-SFP SFP module 1Gbit single mode
DMX-ACC-2-SFP SFP module 1Gbit multimode
DMX-ACC-PC-CAB PowerCON True1 M/F cable for extra equipment connection

Get a Quote
