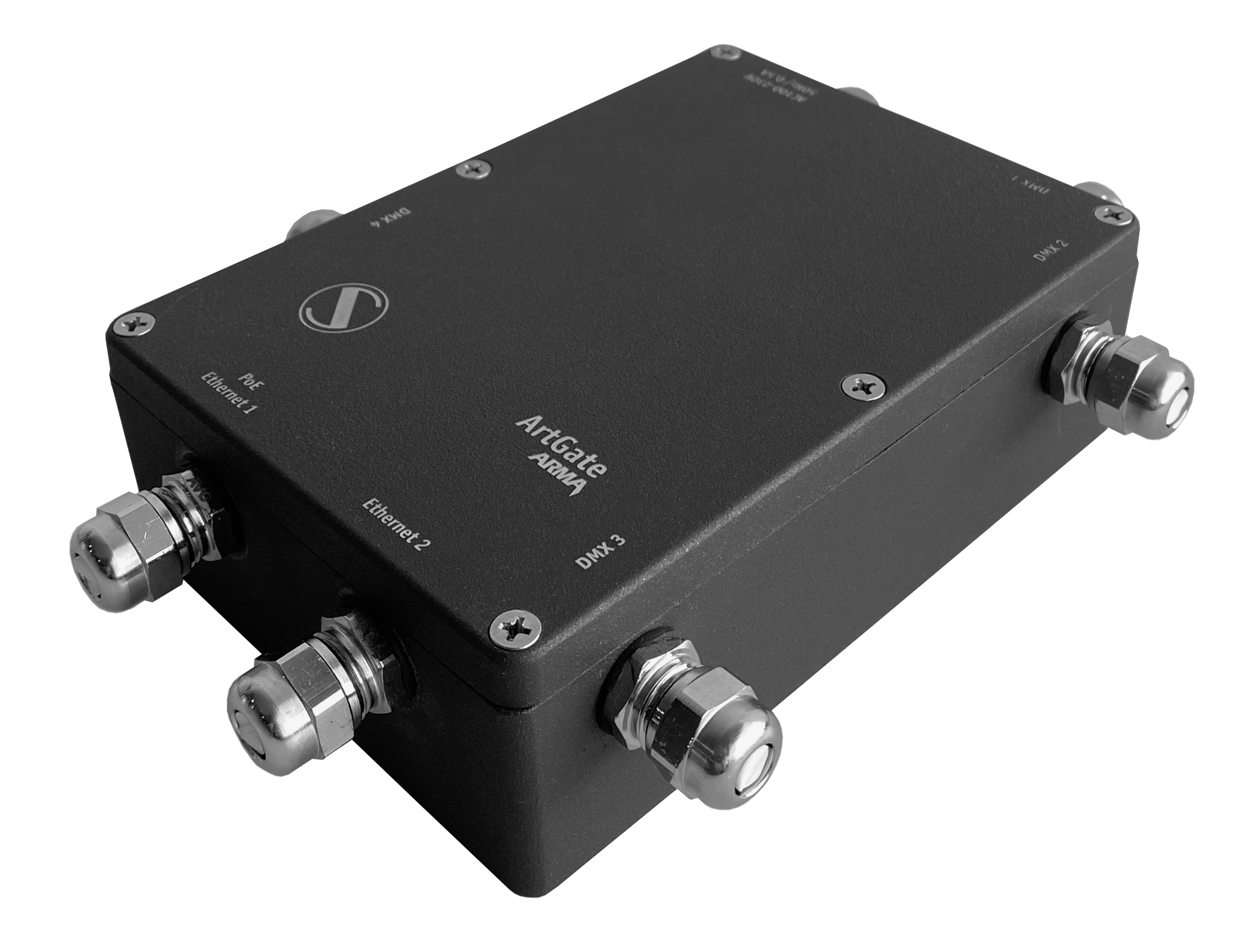

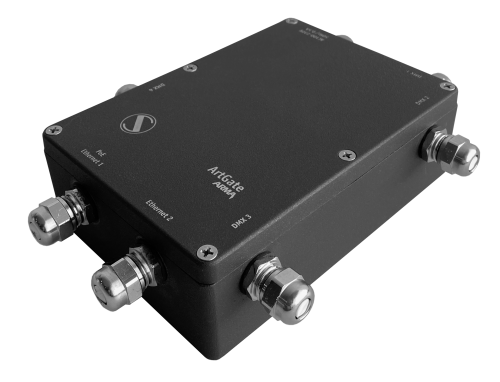

ArtGate Arma

ArtGate Arma

ArtGate Arma

adobe-PDF-icon_30x Data Sheet adobe-PDF-icon_30x User Manual adobe-PDF-icon_30x Mounting Guide

Description

Outdoor bidirectional DMX512-Ethernet converter, splitter, booster, intelligent merger in thick metal case (IP65). Supports wide range of network protocols for DMX data transmission: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL.

Various merging modes available: HTP, LTP, Auto, Priority, Backup, Trigger, XFade (see Merging options). Able to merge up to 4 incoming ArtNet/sACN/KiNet/RTTrPL streams in any combination into DMX512 output for perfect show backup. All DMX ports may be used as inputs or outputs. Can be managed by web interface, ArtGate utility, or any standard software supporting ArtNet. Available as IP44 version for indoor installations.

Get a Quote



Application

  • Transmit more DMX streams with less cables
  • Lighting control and management through single network
  • Convert mapped video content from mapping software into DMX streams
  • Ensure interfacing between modern stage lighting software and DMX lighting
  • Real-time control of video projectors and laser units supporting ArtNet or sACN from DMX console



Key Features

  • Fully protected metal case (IP65) with cable glands
  • Up to 4 DMX512 ports (terminal blocks)
  • 2 Ethernet ports (punch-down blocks)
  • PoE support
  • Maximum surge protection – power supply optimized for voltage from 100 to 315 V
  • Full galvanic isolation of all ports
  • Easy installation and programming
  • Simple user-friendly web interface
  • Configurable DMX port direction
  • Configurable parameters of DMX signal
  • Support network protocols: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL
  • Variable merging options: HTP, LTP, Auto, Priority, Backup, Trigger, XFade. Merged data may be outputted to physical DMX ports, and/or looped back to Ethernet as new network universe
  • Full RDM E1.20 support (controller/responder)
  • Static scenes (presets) stored in non-volatile memory
  • Ability to work as standalone splitter/merger
  • Minimum loading time, fastest recovery after short power failure
  • Master IP that never gets lost



Firmware Updates request firmware

v. 4.06, February 2019:

  • Per-channel X-Fade merging allows switching between different control sources in more flexible way, and helps implementing other types of data transformation (e.g. universes multiplication).
  • DHCP support makes installation process easier providing dynamic primary IP address while the device is still accessible by static secondary IP.
  • IP address conflict detection helps preventing network collisions and failures.
  • ArtGate devices can be discovered and monitored by any software supporting SNMP v1, v2.

v. 4.05, December 2018:

  • full RTTrPL support
  • KiNet v1,v2 support
  • X-fade and trigger merge modes
  • output internal loopback feature
  • static scenes to be used as source for merging











Merging Options

  • HTP: highest takes precedence,
  • LTP: latest takes precedence,
  • AUTO: last modified takes precedence – smart merging mode,
  • PRIORITY: for sACN streams with priority tag, console with the highest priority for a given Universe will be in charge,
  • New BACKUP: any network universe or local static scene can be selected for outputting when main source fails,
  • New TRIGGER and X-FADE: switch dynamically between lighting desks, media servers, and other control sources.



Specifications

Type: Transceiver, converter, splitter, booster, intelligent merger
Housing: Metal solid case, IP65
Operating Temperature: -40…+70°C
Dimensions, mm: 171(D) x 55(H) x 71(W)
Weight: 1.2 kg
Mounting: Surface, truss
Power supply: ~90-250 VAC, 50/60 Hz; PoE
Max current consumption: 0.1 A
Indicators: LEDs for DMX and Ethernet activity
Supported protocols: DMX512, RDM, ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL
DMX ports: 2 or 4
Ethernet port: 2 (10/100 Base-TX, LSA-PLUS® connector)
PoE port: 1
Setup: Web interface
Package contents: ArtGate Arma, user guide

Product Line

AGA-0-2D2E 2 DMX inputs/outputs, 2 Ethernet ports
AGA-0-4D2E 4 DMX inputs/outputs, 2 Ethernet ports

Accessories

MCA-1-120 Truss mounting kit
МСА-2-120 Surface mounting kit
DMX-ACC-ETH-0300 Ethernet Cable 3m



Get a Quote
