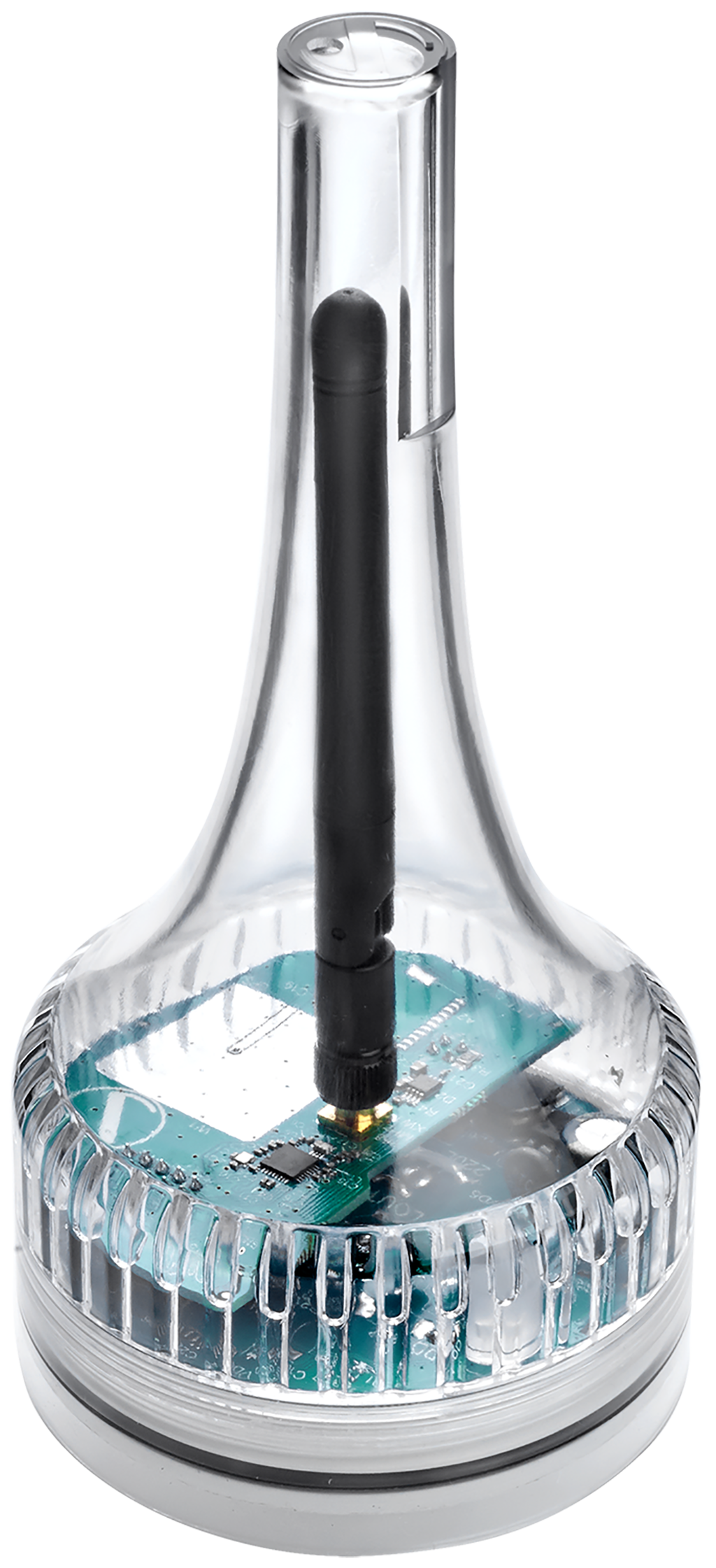

LiTouch Node

LiTouch Node - Individual control module for LiTouch wireless lighting management system (868/915 MHz)

LiTouch Node

adobe-PDF-icon_30x Data Sheet   adobe-PDF-icon_30xMounting Guide

Individual control module for LiTouch wireless lighting management system (868/915 MHz)

LiTouch Node (radio control unit) is installed into the housing of each luminaire, and controlled by LiTouch Base Stations via 800-950 MHz radio channel. Provides dimming and diagnostic functionality via different interfaces (DALI, 1-10V/PWM) as well as individual load control (on/off). Compatible with 3rd party motion sensors.

Get a Quote



Key Features

  • Individual lighting control without additional wiring
  • Versions with open wires, terminal blocks and OEM
  • Available for installation into any luminaire case
  • Embedded light sensor
  • Optional embedded GPS/GLONASS receiver
  • Optional triac for on/off load switching
  • Motion sensor input
  • Automatic node positioning on the map
  • Integrated tilt/vibration sensor to diagnose lighting pole state or failure
  • Available to connect QULON eco monitoring sensors through DALI 2.0



  1. on the housing
  2. on the pole
  3. on the luminaire arm
  4. on the wall
  5. on the NEMA socket



Specifications

Connectors: Wires, NEMA connection
Sensors: Motion sensor input, Embedded light sensor
Control output interface: 1-10V/PWM, DALI
Navigation: GPS/GLONASS (optional)
Communication with controller: ISM band 868/915 MHz
Sensitivity: 123 dBm
Output power: +14 dBm
Input Voltage: ~100-270 VAC, 50/60 Hz
Max load Power: 1000 W
Input power, max: 5W
Operating Temperature: -40…+70°C
Setup: Remote via LiTouch Base Station
Dimensions, mm: 84(D) x 175(H) x 84(W)



Product Line

Individual wireless control node, 868 MHz, Wire, 0-10V/1-10V/PWM/DALI/DALI 2.0, GPS/GLONASS, accelerometer
Product code: QUL-LT-868-W-A
EAN: 5060452241760

Individual wireless control node, 868 MHz, NEMA, 0-10V/1-10V/PWM/DALI/DALI 2.0, GPS/GLONASS, accelerometer
Product code: QUL-LT-868-N-A
EAN: 5060452241821

Individual wireless control node, 868 MHz, Wire, 0-10V/1-10V/PWM/DALI/DALI 2.0
Product code: QUL-LT-868-W-B
EAN: 5060452241883

Individual wireless control node, 868 MHz, NEMA, 0-10V/1-10V/PWM/DALI/DALI 2.0
Product code: QUL-LT-868-N-B
EAN: 5060452241845

Individual wireless control node, 868 MHz, Wire, 1-10V
Product code: QUL-LT-868-W-C
EAN: 5060452241951

Individual wireless control node, 868 MHz, NEMA, 1-10V
Product code: QUL-LT-868-N-C
EAN: 5060452241838

Individual wireless control node, 868 MHz, Zhaga, GPS/GLONASS, accelerometer
Product code: QUL-LT-868-Z-A
EAN: 5060452241968

Individual wireless control node, 868 MHz, Zhaga
Product code: QUL-LT-868-Z-B
EAN: 5060452241982



Accessories

5-pin NEMA connector socket ACC-CON-NEMA5
7-pin NEMA connector socket ACC-CON-NEMA7
Microwave Motion Sensor ACC-OP-SENSM
PIR Motion Sensor ACC-OP-SENSI
Luminaire Arm Mounting Kit ACC-MK-CB-LBRA
Pole/Wall Mounting Kit ACC-MK-CB-LP/W
Lighting Cabinet Mounting Kit ACC-MK-CB-ELCAB
Protective Cap ACC-PE-CL-LP/W



Get a Quote
