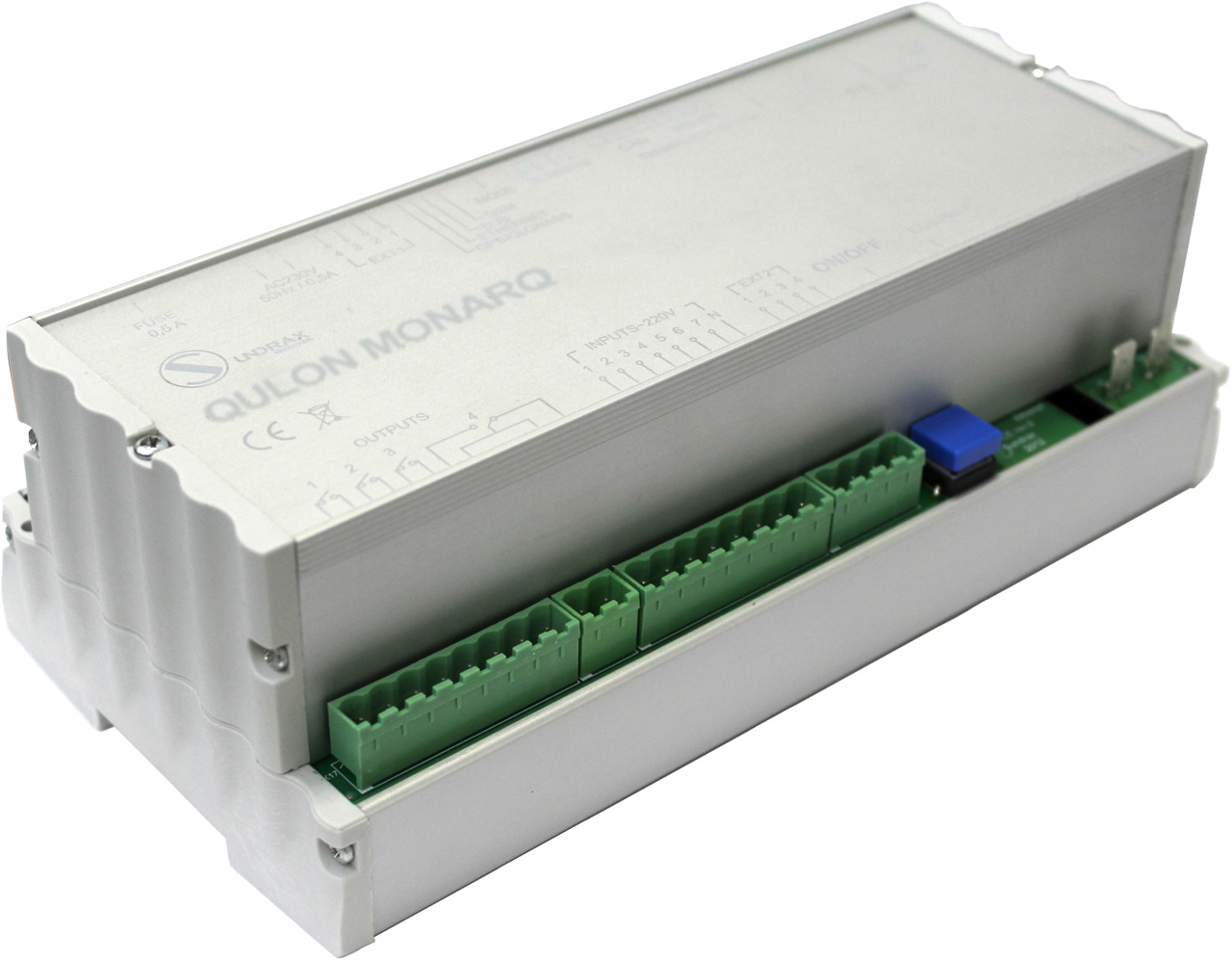

QULON MONARQ — Architectural Lighting Control Processor

QULON MONARQ — Architectural Lighting Control Processor

QULON MONARQ — Architectural Lighting Control Processor

adobe-PDF-icon_30x Data Sheet

Description

QULON MONARQ is DIN-mounted central processor for remote dynamic and static architectural lighting control. Management via GSM adds more flexibility to control installations remotely and simplifies network access. Dynamic architectural lighting control is provided using DMX512, ArtNet/sACN protocols through Ethernet interface and wireless BeDMX interface (2.4 GHz). Any combination of automatic, manual or scheduled control may be used to create complex multi-functional installations. As a member of QULON family, QULON MONARQ is already integrated into QULON Control and Monitoring System and can be easily incorporated into other smart IoT networks.

Key Features

  • Scenario scheduling and live remote control
  • Full management through built-in GSM/GPRS/3G modem
  • DMX, BeDMX and Ethernet interfaces, input/output control for static and dynamic installations
  • Access to electric meter and other sensors via RS-485
  • Identification of electrical faults
  • Withstand voltage up to 305 V
  • Built-in backup power supply
  • Built-in AC power supply
  • Non-volatile memory for data storage
  • GPS/GLONASS and astronomical clock onboard
  • Straightforward design for simple installation

    Specifications

    Protocols supported: DMX512, BeDMX, ArtNet/sACN, RDM, Ethernet
    Relay outputs: 4 or 7
    Voltage control inputs: 7
    Max voltage at inputs: 250V
    Max voltage and current at outputs: 250V, 5A
    Sensor inputs: 2
    Radio channel: 1 BeDMX, 1 GSM 850/900/1800/1900
    LAN: Ethernet 10/100 Base-TX
    Serial interfaces: RS-485, CAN, DMX
    Settings: Locally via Ethernet; Remote via GSM/GPRS/3G
    Flash memory: 1 Gb
    Connectors: Terminal blocks 15EDGVС
    Power supply: ~100-270 VAC, 50/60 Hz
    Working temperature range: -40…+70°C
    Industrial protection: IP20
    Dimensions: 210 х 105 x 75mm
    Mount: DIN rail in the power cabinet or individual waterproof box

    Product Line

    1 DMX, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, 2 SIM, GPS/GLONASS, AC 100-250V
    Product code: QUL-MNR-100407
    EAN: 5060452240565

    2 DMX, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, 2 SIM, GPS/GLONASS, AC 100-250V
    Product code: QUL-MNR-200407
    EAN: 5060452240572

    4 DMX, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, GPS/GLONASS, AC 100-250V
    Product code: QUL-MNR-400407
    EAN: 5060452240589

    1 DMX, 1 BeDMX, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, 2 SIM, GPS/GLONASS, AC 100-250V
    Product code: QUL-MNR-110407
    EAN: 5060452240640

    2 DMX, 1 BeDMX, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, 2 SIM, GPS/GLONASS, AC 100-250V
    Product code: QUL-MNR-210407
    EAN: 5060452240657

    Accessories

    DIN rail mounting kit MCA-1-DIN
    Waterproof box QUL-C-AC-IP65
    Enhanced signal quality GSM antenna QUL-ACC-GSM-401
    Vandal-proof GSM antenna QUL-ACC-GSM-402
    Antenna Cable 5m QUL-ACC-ANT-0500
    Antenna Cable 10m QUL-ACC-ANT-1000
