PixelGate Arma

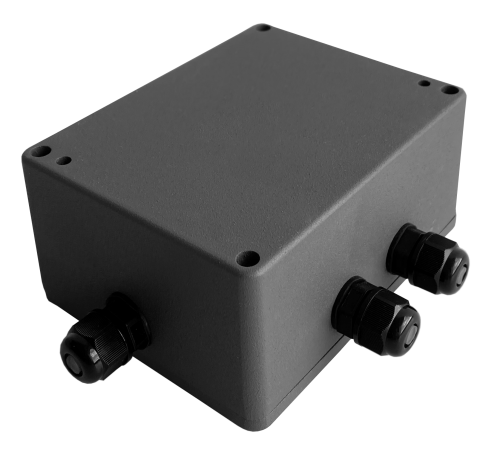

PixelGate Arma — Cascadable direct ArtNet/sACN to SPI LED pixel strip driver

PixelGate Arma — Cascadable direct ArtNet/sACN to SPI LED pixel strip driver

adobe-PDF-icon_30x Data Sheet   adobe-PDF-icon_30x User Manual   adobe-PDF-icon_30x Mounting Guide

Description

ArtNet/sACN to SPI controllers for pixel mapped indoor and outdoor LED strip installations. Two Ethernet ports and integrated switch provide cascadability. Directly convert up to 16 DMX universes into SPI to control 2,730 RGB pixels supporting up to 8 separate LED
outputs.

Power supplied to LEDs separately, from 5V to 48V. Outputs are configurable through web-based management page. Tough and compact waterproof enclosure (IP65) specifically crafted for outdoor use.



Advantages

  • Cascadable through integrated switch and 2 Ethernet ports
  • Support ArtNet and sACN
  • LEDs with power supply up to 48V
  • Work with two-wire and three-wire strips
  • Support various LED types
  • Natural heat convection, no fans or coolers, no vent slots – full protection from dust and smoke increases product lifetime
  • Power source 5/12/24/48 VDC
  • Plastic or metal glands



Application

  • Control drivers of LED pixel strips by converting ArtNet/sACN to SPI
  • Drivers for LED light curtains with individual pixel control
  • Drivers for LED strip installations with individual pixel control
  • Drivers for mapped LED strip screens
  • Mapping of moving images on free-form objects
  • Plastic or metal glands



New firmware, January 2019:

  • new flat web interface for device setup
  • one-wire interface LED strips support: WS2811, WS2812B, WS2818, TM1809, UCS1903, UCS1903B, UCS1909, UCS1909B, UCS1912, UCS1912B, UCS2903, UCS2903S, UCS2909, UCS2912, INK1002, INK1003, LX1003
  • two-wire interface LED strips support: WS2801, WS2803, DM413, APA102, LPD8803, LPD8806

Request firmware







Software Compatibility

In fact, PixelGates work fine with any lighting software that supports ArtNet/sACN, some of time-tested solutions are:

  • Elios
  • Madrix
  • LightJams
  • LightingPad
  • Jinx!
  • Luminair

Specifications

Housing: Solid metal case (IP65)
Operating Temperature: -40…+70°C
Dimensions, mm: 115(D) x 55(H) x 90(W)
Weight: 0.85 kg
Mounting: Surface, truss
Power supply: 5/12/24/48 VDC
Indicators: LED for Ethernet activity
Control interface: ArtNet, ACN
Channels: 8 SPI
Supported LED strips: WS2812B, WS2811, TM1809, UCS1903, WS2801, APA102, LPD8806, WS2818, WS2812S, UCS1903B, UCS1909, UCS1909B, UCS1912, UCS1912B, UCS2903, UCS2903S, UCS2909, UCS2912, INK1002, INK1003, LX1003, SM16703, WS2813, WS2813A, WS2813B, WS2813C, WS2813D, TM1803, TM1804, TM1812, TM1814, TM1829, WS2803, DM413, LPD8803, LPD6803, LPD6813, LPD1101, UCS5903, UCS6909, UCS6912, UCS7009, D705, D707, D708
Setup: Web interface
LED outputs: 8, TTL 3/5V
Ethernet ports: 2, 10/100 Base-TX
Ethernet connectors: 2 LSA-PLUS® connectors

Product Line

Pixel strip driver, plastic glands, 8 LED ports, 2 Ethernet ports (2730 RGB pixels), DC 5-48V, outdoor IP65
Product code: PXA-P-2E8SPI
EAN: 5060452246949

Pixel strip driver, plastic glands, 8 LED ports, 2 Ethernet ports (2730 RGB pixels), DC 5-48V, outdoor IP65
Product code: PXA-M-2E8SPI
EAN: 5060452246956

Accessories

Truss mounting kit (2-port device) MCA-1-113
