RadioGate Arma (wireless DMX+Ethernet)

RadioGate Arma 2019

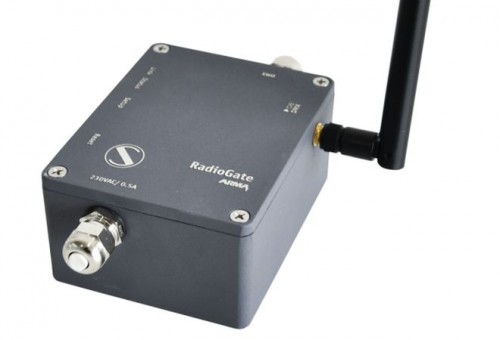

RadioGate Arma: Waterproof DMX wireless transceiver + DMX-Ethernet converter

adobe-PDF-icon_30x Data Sheet adobe-PDF-icon_30x User Manual adobe-PDF-icon_30x Mounting Guide

Description

RadioGate Arma provides non-stop bidirectional DMX communication (up to 4 universes) between devices in 2.4 GHz ISM with RDM feedback and integrated bidirectional DMX/ArtNet/sACN converter. Maximum distance is up to 1500 metres with directional antennas. Adaptive Frequency Hopping (AFH) helps to avoid disturbance from any other wireless equipment. RadioGate is versatile transmitter+receiver, with one-button configuration. Packed into waterproof metal enclosure (IP65) specifically crafted for outdoor use, with galvanically isolated ports, RadioGate Arma is a smart choice when wired DMX transmission is hindered. Available as IP44 modification for indoor application (RadioGate Solid).

Get a Quote

Key Features

  • 2 or 4 DMX universes depending on modification
  • Maximum reliability of connection based on Bluetooth 5.0 protocol (beDMX)
  • Communication range up to 200 m (regular antenna) and 1500 m (directional antenna)
  • Maximum resistance to interference through Adaptive Frequency Hopping (AFH)
  • One-button programming, simple configuration
  • Ethernet port and integrated DMX/ArtNet/sACN converter
  • Custom routing and merging of DMX streams, setup via web interface
  • Full RDM support
  • Diagnostics of DMX transmission quality
  • LED indication of communication status on transmitter
  • All devices are cross functional transmitter+receiver
  • Natural heat convection, no fans or coolers, no vent slots – full protection from dust and smoke increases product lifetime
  • Effective moulded thick metal case and metal buttons provide mechanical reliability
  • Full galvanic isolation of all ports
  • Maximum surge protection – power supply optimized for voltage from 100 to 300 V
  • Optional 9-30V battery support
  • Optional PoE support



Application

  • Bidirectional outdoor DMX/ArtNet/sACN transmission including communication through local network
  • Transmission when wired DMX/ArtNet/sACN transmission is hindered or impossible
  • Transmission from lighting console to stage in open spaces where lighting cables may be trampled down
  • Transmission to heritage assets and landmarked buildings
  • Transmission between architectural lighting installations
  • Transmission to moving objects and moveable bridges

       POE (2)

Merging Options

  • HTP: highest takes precedence,
  • LTP: latest takes precedence,
  • AUTO: last modified takes precedence – smart merging mode,
  • PRIORITY: for sACN streams with priority tag, console with the highest priority for a given Universe will be in charge,
  • BACKUP: any network universe or local static scene can be selected for outputting when main source fails,
  • TRIGGER and X-FADE: switch dynamically between lighting desks, media servers, and other control sources.



Specifications

Type: Transceiver
Supported protocols: DMX512, RDM, ArtNet I, II, III, IV, sACN draft, release, KiNet v1, v2, RTTrPL
Housing: Metal solid case, IP65
Operating Temperature: -40…+70°C
Dimensions, mm: 203.5(D) x 51(H) x 141.5(W)
Weight: 1.0 kg
Mounting: Surface, truss
Power supply: ~100-250 V, 50/60 Hz; PoE 802.3af mode A, B
Max current consumption: 0.1A
Indicators: LEDs for Ethernet, DMX and beDMX activity
Transmission range: 200 m (regular antenna), 1500 m (directional antenna)
Communication protocol: beDMX, 2.4 GHz
DMX ports: 2 or 4 isolated (depends on modification)
Ethernet ports: 1
DMX connectors: 15EDGV terminal blocks
Setup: Buttons, web interface
Package contents: RadioGate Arma, 2.4GHz antenna(s)

Product Line

RGA-0-2D2C-AC 2 DMX inputs / outputs, 1 Ethernet port, 2 DMX universes
RGA-0-4D2C-AC 4 DMX inputs / outputs, 1 Ethernet port, 4 DMX universes

Accessories

DMX-MCA-1-113 Truss mounting kit (Solid, Arma)
DMX-ACC-ANT-2 2 dbi 2.4GHz antenna
DMX-ACC-ANT-5 5 dbi 2.4GHz antenna
DMX-ACC-ANT-050 Antenna Cable 5m

Get a Quote
