DALIGate DIN

DALIGate DIN: DMX/ArtNet/DALI converter

DALIGate DIN: DMX/ArtNet/DALI converter

adobe-PDF-icon_30x Data Sheet   adobe-PDF-icon_30x User Manual

Description

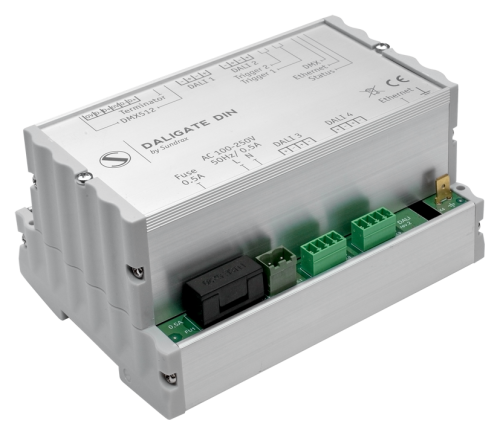

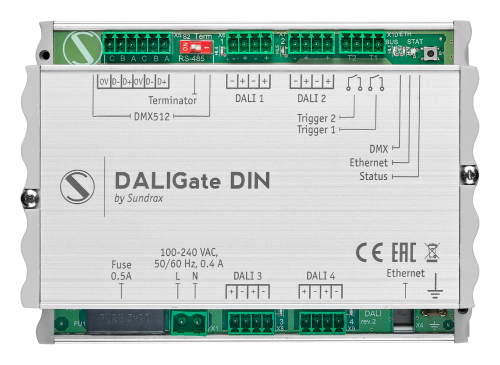

DALIGate DIN is DIN rail mounted converter that converts ArtNET/sACN/DMX signal into DALI protocol to include DALI lighting fixtures into controllable lighting network.

With DIN rail mounting hassle-free installation and ArtNET/sACN/DMX input, DALIGate DIN is ideal as indoor solution for mixed lighting control purposes in theatres, small venues, architectural installations, industrial, warehouse, and agricultural lighting.

Get a Quote

Key Features

  • Work with DMX, ArtNet and sACN
  • Converting options are channel-to-channel, channel-to-device, and channel-to-group
  • Custom grouping of lights
  • Automatically detect DALI lights in network through web interface with no extra software
  • Maximum surge protection – power supply optimized for voltage from 100 to 315 V
  • Full galvanic isolation of all ports
  • Alarm triggered pre-programmed scenarios
  • Test button support (fixtures test, device reset to default)
  • Fixture search mode without readdressing



Application

  • Control DALI lights by DMX / ArtNet / sACN



New firmware 1.11 (January 2019): Request firmware

  • new flat web interface for device setup, fixture searching and group assignment
  • fixture search mode without readdressing: 2 search modes allow to re-assign short addresses of DALI fixtures (Initialize), or just to enumerate fixtures without readdressing (Search)
  • 2 trigger inputs support for external signals and alarms
  • test button support (fixtures test, device reset to default): Test button can be used to switch all fixtures on and of manually (without using the web interface or sending data via ArtNet/sACN/DMX512), or to reset settings to default (when pressed and held during power-up)





Specifications

Housing: Metal/plastic case, IP20
Operating Temperature: -40…+70°C
Dimensions, mm: 142(D) x 105(H) x 75(W)
Weight: 0.45 kg
Mounting: DIN rail in the power cabinet (8 modules)
Power supply: ~90-250 VAC, 50/60 Hz
Input Power (max): 5 W
Mains Fuse: 0.5 A
Indicators: LEDs for DMX, DALI and Ethernet activity
Supported protocols: DALI, DMX512, RDM, ArtNet I, II, III, IV/ sACN
DMX ports: 1 isolated
DMX connector: Terminal blocks 15EDGVC
Controllable output lines: 4 DALI
Ethernet port: 10/100 Base-TX, RJ-45
Setup: Web-interface

Product Line

DGD-1-DE4DAL 4 DALI inputs/outputs, 1 DMX port

Accessories

MCA-1-DIN DIN rail mounting kit
MCA-1-IP65 Waterproof box (IP65)
DMX-ACC-ETH-0300 Ethernet Cable 3m



Get a Quote
