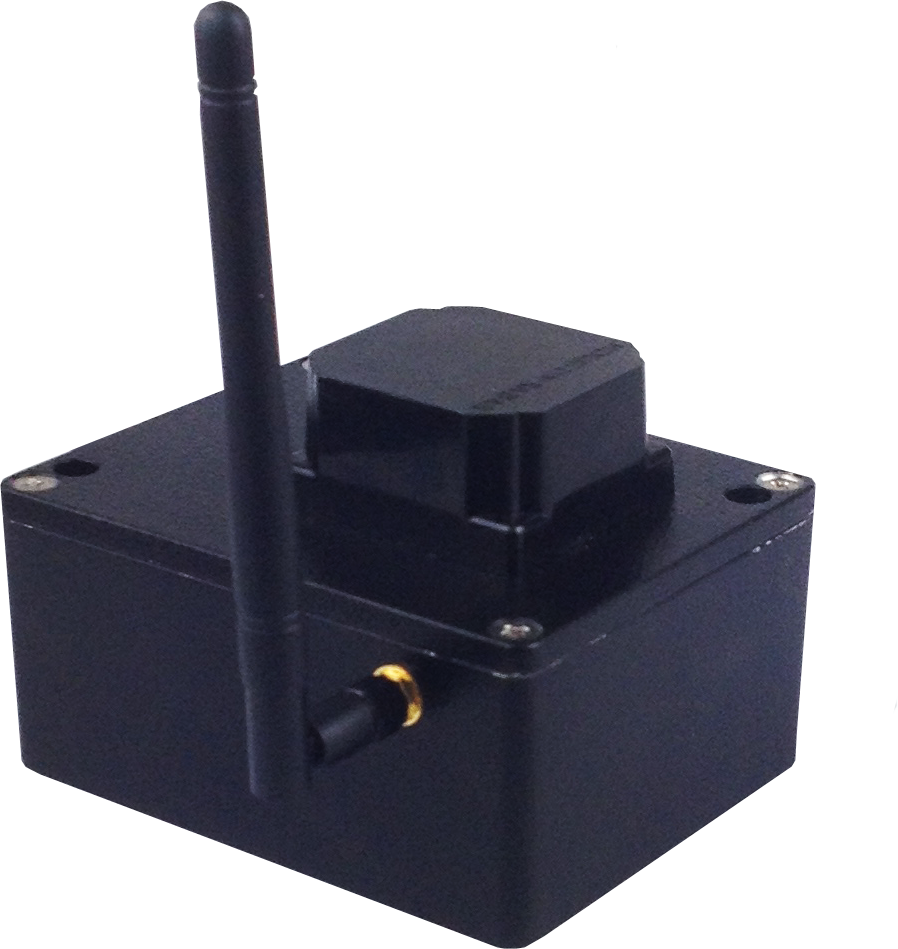

QULON Traffic — Traffic intensity sensor
Description
QULON Traffic collects traffic statistics on multilane roads and highways (up to 6 lanes). Classifies vehicles by their length. Works at long distances (up to 37 m). Mounted to the pole, has built-in GSM modem. Integrated into lighting management system. Essential for those who desire to have accurate traffic information.
Key Features
- Easy installation and programming
- Built-in power supply
- Die-cast, waterproof metal casing
- Built-in GSM modem
Specifications
Wireless channels: 1
Connectors: 15EDGV terminal blocks
Serial interface: RS-232, RS-485 (optional), GSM/GPRS/EDGE
Radio Channel: GSM 850/900/1800/1900
Max length of RS-485 line: 1500 m
Power supply: ~100-270 VAC, 50/60 Hz and 12 V Accumulator (optional)
Setup: Initial via RS-232; Remote via GSM/GPRS/EDGE
Operating Temperature: -40…+70°C
IP Rating: IP65
Dimensions, mm: 115(D) x 80(H) x 90(W)
Mounting: Pole
Product Line
RS-232, GSM/GPRS/EDGE; AC 100-250V
Product code: QUL-T-6-37-232
EAN: 5060452243146
Accessories
Enhanced signal quality GSM antenna QUL-ACC-GSM-401
RS-232 Interface Cable QUL-T-AC-232CAB
