Qulon С2 — Gateway for Remote Lighting Control

Qulon С2 — Gateway for Remote Lighting Control

adobe-PDF-icon_30x Data Sheet

Description

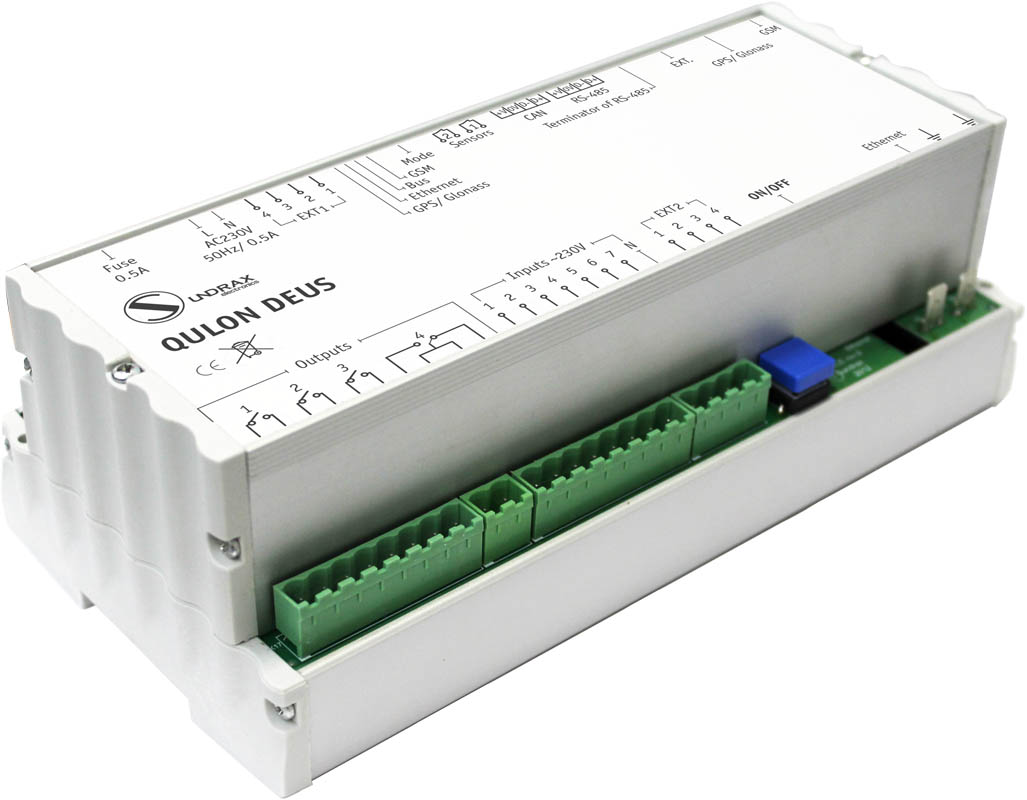

QULON С2 (previous product name: DEUS) is the next generation gateway for QULON Street Lighting Control and Management System (visit our new QULON CMS website for more information). С2 is installed into lighting cabinet to provide remote lighting control for all components of lighting network: magnetic starters, power meter, individual lamp controllers, sensors, add-on Qulon hardware.

Data from the connected devices and meters are collected by C2 via RS-485 or CAN interfaces and then sent to QULON server via GSM/GPRS/3G mobile network or Ethernet 10/100 Base TX. Programming, scheduling and troubleshooting are done remotely from QULON software.

Same reliable core gateway for lighting control system as our classic QULON C controller with some essential improvements like 3G and Ethernet support for faster communication and GPS/GLONASS for synchronization and better positioning.

Get a Quote



Key Features

  • Backup power supply
  • Non-volatile memory
  • Scenario scheduling and live remote control
  • Powerline individual control with Qulon Simpline
  • Wireless individual control in 868/915 MHz with Qulon LiTouch
  • Withstand voltage up to 305 V
  • GPS/GLONASS and astronomical clock onboard
  • Straightforward design for simple installation
  • Identification and immediate alert of electrical faults
  • Access to electric meter and other sensors via RS-485
  • Full management through built-in GSM/GPRS/3G modem or Ethernet



Specifications

Relay outputs: 4 or 11
Voltage control inputs: 7 or 14
Max voltage and current on inputs: 250V, 5A
Max voltage and current on outputs: 250V, 5A
Sensor inputs: 2
Radio channel: GSM 850/900/1800/1900
Navigation: GPS/GLONASS
Data exchange with the control office: RS-485, CAN, GSM/GPRS/3G
Settings: Locally via Ethernet; Remote via GSM/GPRS/3G
Connectors: Terminal blocks 2EDGVC, 15EDVGС
Power supply: ~100-270 VAC, 50/60 Hz or 12-30V
Mains Fuse: 0.5 A
Working temperature range: -40…+70°C
Industrial protection: IP20
Dimensions: 210 х 105 x 75mm
Mount: DIN rail in the power cabinet or individual waterproof box

Product Line

Qulon controller, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, 2 SIM, GPS/GLONASS, AC 100-250V
Product code: QUL-C-3G0407E
EAN: 5060452240121

Qulon controller, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, 2 SIM, GPS/GLONASS, AC 100-250V, US/CA VERSION
Product code: QUL-C-3GU0407E
EAN: 5060452240138

Qulon controller, 4 relay outputs, 7 voltage control inputs, 3G GSM, Ethernet, 1GB memory, 2 RS-485 (MODBUS), CAN, 2 sensor inputs, 2 SIM, GPS/GLONASS, DC 12-30V
Product code: QUL-C-3G0407E-DC
EAN: 5060452240145

Accessories

Waterproof box QUL-C-AC-IP65
DIN rail mounting kit QUL-C-AC-DIN
Enhanced signal quality GSM antenna QUL-ACC-GSM-401
Vandal-proof GSM antenna QUL-ACC-GSM-402
Antenna Cable 5m QUL-ACC-ANT-0500
Antenna Cable 10m QUL-ACC-ANT-1000
Qulon PLX QUL-PLX-2
RS-232 adapter QUL-C-AC-485-232



Get a Quote
