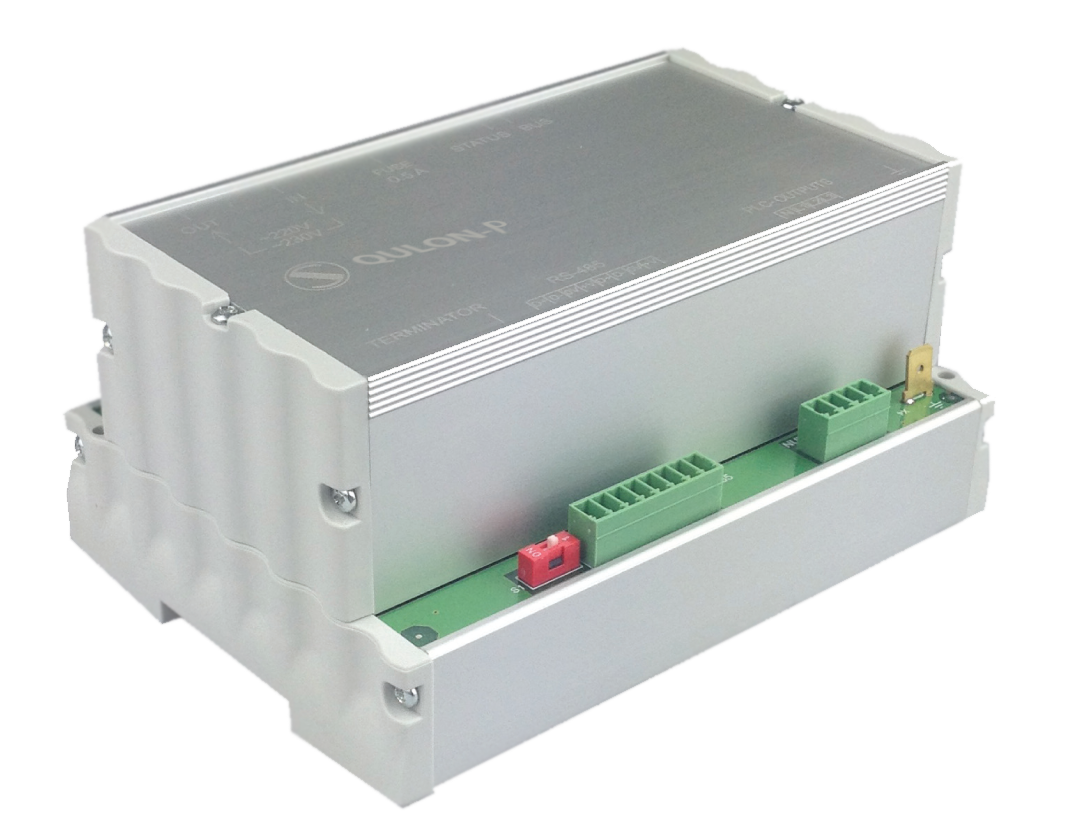

QULON Simpline — Individual Control Module

QULON Simpline provides individual light control in a three phase powerline.

QULON Simpline provides individual light control in a three phase powerline.

adobe-PDF-icon_30x Data Sheet

Description

QULON Simpline is additional module that provides individual remote light control of luminaires with installed PLC modules through power lines (PLC) using Sundrax’s proprietary Simpline technology to communicate luminaire node controller with central gateway. Additional control wires are not required. Mounted inside existing lighting cabinet together with QULON C (Central Gateway). Connected to the central controller QULON C via RS-485 interface (ModBus). Acts as a master to send/receive data to/from PLC modules (slaves). It communicates with the slaves using PLC interface via existing power lines.

Key Features

  • Provides individual control and power regulation of discharge lamps with an electronic ballast and a built-in PLC module
  • Provides individual control and power regulation of LED lamps with a built-in PLC module
  • Connected to QULON C over RS-485 (MODBUS RTU)
  • Full galvanic isolation of RS-485 interface
  • Built-in power supply ~220 VAC



Specifications

Max voltage at inputs: 250 V
Connectors: Terminal blocks 15EDGV
Serial interface: RS-485, PLC
Max length of RS-485 line: 1500 m
Communication with node: CENELEC EN 50065-1 (band C)
Input Voltage: ~100-270 VAC, 50/60 Hz
Number of phases: 1-3
Operating Temperature: -40…+70°C
IP Rating: IP 20
Dimensions, mm: 142(D) x 105(H) x 75(W)
Mounting: DIN-rail in the power cabinet

Product Line

Powerline solution, RS-485 (MODBUS), CENELEC EN 50065-1 (band C), AC 100-250V
Product code: QUL-P-EXT-PWR
EAN: 5060452241043

Powerline solution, RS-485 (MODBUS), CENELEC EN 50065-1 (band C), DC 9-36V
Product code: QUL-P-EXT-PWR-DC
EAN: 5060452241050

Accessories

Anti-jamming filter on Powerline, max load 20A QUL-C-AC-FLT20
Anti-jamming filter for 3-phase Powerline, max load 20A per phase QUL-C-AC-3FLT20
Anti-jamming filter on Powerline, max load 40A QUL-C-AC-FLT40
Anti-jamming filter for 3-phase Powerline, max load 40A per phase QUL-C-AC-3FLT40
DIN rail mounting kit QUL-C-AC-DIN
