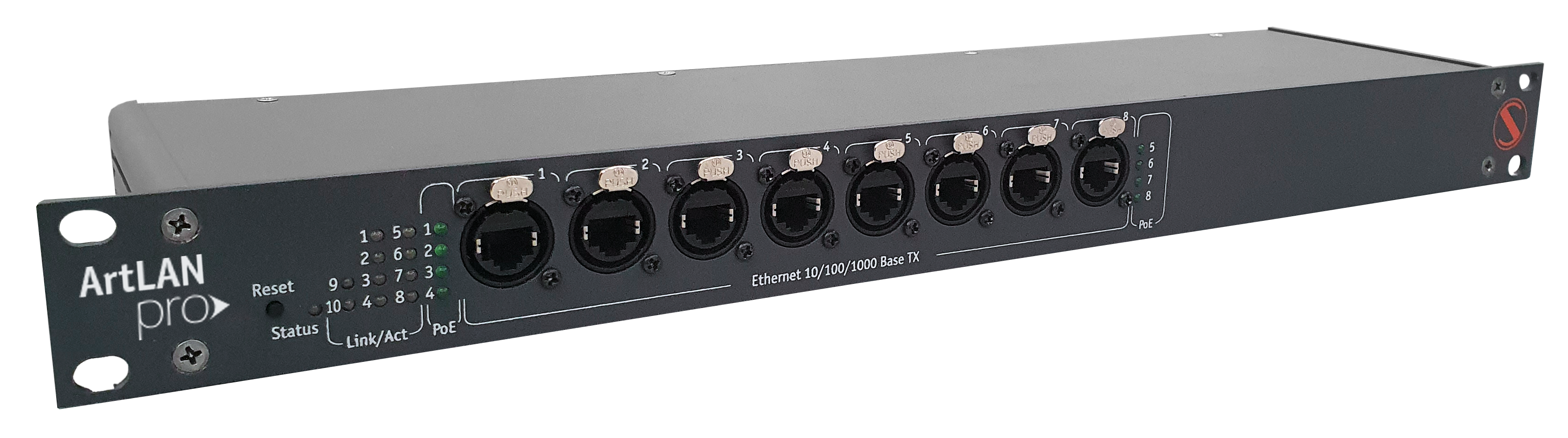

ArtLAN Pro: Fiber/Ethernet Gigabit switch for pro lighting industry

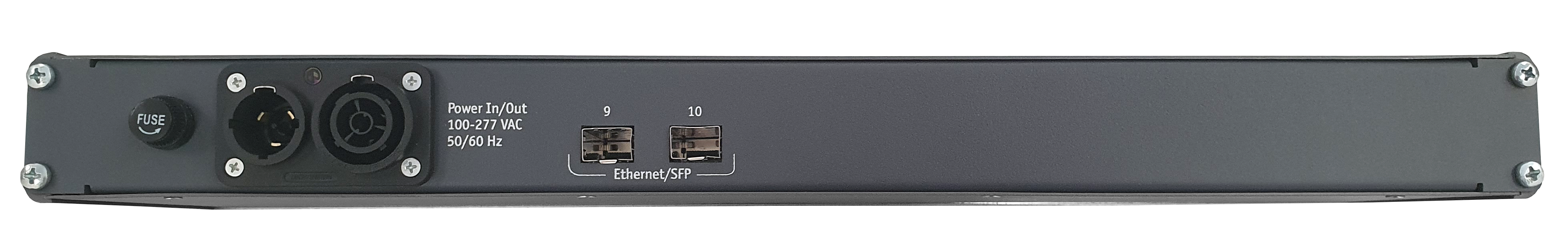

ArtLAN Pro, rear panel
Description
ArtLAN is professional quality switch designed specifically for pro lighting industry. Providing reliable Ethernet switching functionality, ArtLANs are equipped with eight RJ-45/EtherCON lockable ports for 10/100/1000 Mbps communication and two 2500 Mbps SFP interconnects for fiber optic connection. SFP provides opportunity to connect a wide variety of fiber cables in order to extend switching functionality throughout the network. Neutrik PowerCON locking AC connector provides a very rugged solution in combination with a locking device in order to guarantee a safe power connection. All Ethernet ports are Power-over- Ethernet (PoE) compatible.
Key Features
- Easy installation and programming
- 10/100/1000 Mbps and 2500 Mbps data transmission
- Optical fiber connectivity via SFP interconnects
- Ethernet connectivity via lockable RJ-45 EtherCONs
- PoE available on all ports
- Profile stored internally
- 2 IPs (Master IP that never gets lost)
- Simple web interface
- Galvanic isolation of all ports
Specifications
Ethernet ports: 8 (RJ-45/etherCon)
Ethernet port: 10/100/1000 Base-TX
Fiber Optic connectors: 2 SFP
Power supply: ~90-250 VAC, 50/60 Hz; PoE
Input Power (max): 5W
Mains Fuse: 0.5 A
Dimensions, mm: 482(D) x 44(H) x 220(W)
Operating Temperature: 0…+60°C
Storage Temperature: -50…+70°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Product Line
8 Ethernet ports (etherCON), 2 Fiber Optic ports (SFP)
Product code: ALP-6-8E2F
EAN: 5060452247175
Accessories
Truss mounting kit MCA-1-TMK
Ethernet Cable 3m DMX-ACC-ETH-0300

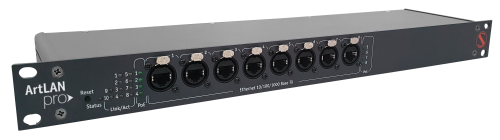

ArtLAN Pro
