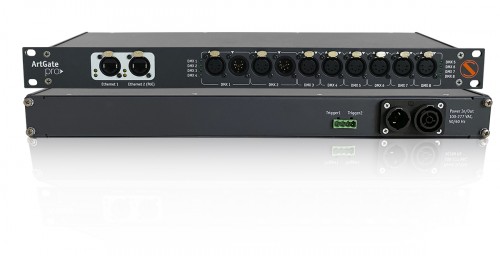

ArtGate PRO, Ethernet DMX node with 2 Ethernet ports

adobe-PDF-icon_30x Data Sheet  adobe-PDF-icon_30x User Manual   adobe-PDF-icon_30x Truss Mounting Guide

Description

Rack mount bidirectional DMX512-Ethernet converter, splitter, booster, intelligent merger. Supports wide range of network protocols for DMX data transmission: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL. 2 Ethernet ports provide additional switch functionality.  PowerCON TRUE1 inlet+outlet combination to daisy chain and trigger inputs to activate preset scenarios.

Various merging modes available: HTP, LTP, Auto, Priority, Backup, Trigger, XFade (see Merging options). Able to merge up to 4 incoming ArtNet/sACN/KiNet/RTTrPL streams in any combination into DMX512 output for perfect show backup. All DMX ports may be used as inputs or outputs. Can be managed by web interface, ArtGate utility, or any standard software supporting ArtNet. Available as 16-port device or with fibre optic link.

Get a Quote



also available as:

ArtGate Product Overview

ArtGate Web Configuration



Application

  • Advanced DMX backup
  • Transmit more DMX streams with less cables
  • Lighting control and management through single network
  • Convert mapped video content from mapping software into DMX streams
  • Ensure interfacing between modern stage lighting software and DMX lighting
  • Real-time control of video projectors and laser units supporting ArtNet or sACN from DMX console



Key Features

  • 1U rack mount case
  • Up to 8 DMX512 ports (XLR5 or 3)
  • 2 Ethernet ports (EtherCON) with switch functionality
  • PoE support
  • Natural heat convection, no fans or coolers, no vent slots – full protection from dust and smoke increases product lifetime
  • Maximum surge protection – power supply optimized for voltage from 100 to 315 V
  • Full galvanic isolation of all ports
  • Easy installation and programming
  • Simple user-friendly web interface
  • Configurable DMX port direction
  • Configurable parameters of DMX signal
  • Support network protocols: ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL
  • Trigger inputs for external events and alarms
  • Static scenes (presets) stored in non-volatile memory
  • Variable merging options: HTP, LTP, Auto, Priority, Backup, Trigger, XFade. Merged data may be outputted to physical DMX ports, and/or looped back to Ethernet as new network universe
  • Full RDM E1.20 support (controller/responder)
  • Ability to work as standalone splitter/merger
  • Minimum loading time, fastest recovery after short power failure
  • DHCP support
  • IP address conflict detection
  • PowerCON TRUE1 inlet+outlet combination



Firmware Updates request firmware

v. 4.10, April 2021

  • Minor bugs fixed
  • Several buttons renamed

v. 4.09, February 2020

  • Smart output feature now on each individual port: multiple controllers/converters can be safely connected to the same DMX bus
  • New parameters for individual ports: input timeout, output frame repetition period, output data validity timeout, RDM enable/disable
  • Output universe data can be shifted to offset from -511 to +511: any portion of DMX address space now can be moved to any position
  • SLP support: nodes are now discoverable for consoles and other management systems supporting ANSI E1.17 standard (ACN SDT/DMP)

v. 4.06, February 2019:

  • Per-channel X-Fade merging allows switching between different control sources in more flexible way, and helps implementing other types of data transformation (e.g. universes multiplication).
  • DHCP support makes installation process easier providing dynamic primary IP address while the device is still accessible by static secondary IP.
  • IP address conflict detection helps preventing network collisions and failures.
  • ArtGate devices can be discovered and monitored by any software supporting SNMP v1, v2.

v. 4.05, December 2018:

  • full RTTrPL support
  • KiNet v1,v2 support
  • X-fade and trigger merge modes
  • output internal loopback feature
  • static scenes to be used as source for merging







Merging Options

  • HTP: highest takes precedence,
  • LTP: latest takes precedence,
  • AUTO: last modified takes precedence – smart merging mode,
  • PRIORITY: for sACN streams with priority tag, console with the highest priority for a given Universe will be in charge,
  • New BACKUP: any network universe or local static scene can be selected for outputting when main source fails,
  • New TRIGGER and X-FADE: switch dynamically between lighting desks, media servers, and other control sources.



Specifications

Type: Transceiver
Housing: Metal solid case, IP20
Operating Temperature: 0…+60°C
Dimensions, mm: 482(D) x 44(H) x 110(W)
Weight: 1.2 kg
Mounting: Rack 1 unit
Power supply: ~90-250 VAC, 50/60 Hz, PoE 802.15f mode A, B
Input Power (max): 5 W
Indicators: LEDs for DMX and Ethernet activity
Supported protocols: DMX512, RDM, ArtNet I,II,III,4, sACN draft/release, KiNet v1,v2, RTTrPL
DMX ports: 4 or 8 ports: 2 paired XLRs (M+F) and 2 or 6 XLRs (F) (5 pins, 3 pins)
Ethernet ports: 2x 10/100 Base-TX, RJ-45/ EtherCon
Trigger inputs: 2 (terminals)
Setup: Web interface
Package contents: ArtGate Pro, power cable



Product Line

4 DMX inputs/outputs (3-pin), 2 Ethernet ports, trigger inputs
Product code: AGP-3-4D2E
EAN: 5060452244594

4 DMX inputs/outputs (5-pin), 2 Ethernet ports, trigger inputs
Product code: AGP-5-4D2E
EAN: 5060452244587

8 DMX inputs/outputs (3-pin), 2 Ethernet ports, trigger inputs
Product code: AGP-3-8D2E
EAN: 5060452244662

8 DMX inputs/outputs (5-pin), 2 Ethernet ports, trigger inputs
Product code: AGP-5-8D2E
EAN: 5060452244655



Accessories

Truss mounting kit MCA-1-TMK
